Цифровой тестер напряжения постоянного тока
Specifications Range Resolution Accuracy
DC Voltage 600mV/6V/60V/600V 0.1mV/0.001V/0.01V/0.1V ±(0.7%+3)
AC Voltage 6V/60V/600V 0.001V/0.01V/0.1V ±(0.8%+3)
LO-Z(DCV/ACV) 1V~600V 0.001V ±(2.0%+3)
DC Current 600uA/1000uA 0.1uA/1uA ±(1.0%+4)
AC Current 200A 0.1A ±(3.0%+3)
Resistance 600?/6k?/60k?/600k? 0.1?/0.001k?/0.01k?/0.1k? ±(0.8%+3)
6M?/60M? 0.001M?/0.01M? ±(1.2%+3)
Capacitance 60nF/600nF/6µF/60µF 0.01nF/0.1nF/0.001µF ±(4.0%+5)
600µF/6000µF/60mF 0.01µF/0.1µF/1µF/0.01mF ±(4.0%+5)
Frequency
(Hz/Duty) 60Hz/600Hz/6kHz/60kHz
0.01Hz/0.1Hz/0.001kHz/0.01kHz
±(0.3%+5)
600kHz/6MHz/60MHz 0.1kHz/0.001MHz/0.01MHz ±(0.3%+5)
Frequency (A) 100Hz/1000Hz 0.01Hz/0.1Hz ±(1.5%+5)
Frequency (V) 100Hz/1000Hz/10kHz 0.01Hz/0.1Hz/0.001kHz ±(1.5%+5)
Duty Cycle 5%~95% 0.1% ±(0.3%)
Temperature -20?~0?/-4?~32? 1?/1? ±(3.0%+2)

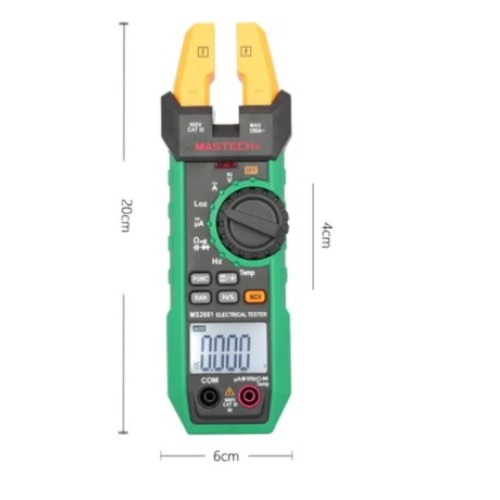

0?~400?/32?~752? 1?/1? ±(2.0%+2) Тип корпуса: MS2601
