JJY-1060N-MAS/DCF-1060N-03A

DCF---77.5KHZ single frequency specification:
Product number: DCF-1060N-03A
RCCM category: DCF/77.5KHz single frequency module
PCB size: 25.0x11.5x1.0mm/FR4
Antenna size: AR10x60mm/High Q
Nominal frequency: C
Sensitivity: 27±2dB
Receiving IC: CME6005

JJY-40/60KHZ dual frequency specification
Product number: JJY-1060N-MAS
RCCM category: JJY/40+60KHz dual frequency module
PCB size: 22.0x13.5x1.0mm/FR4
Antenna size: AR10x60mm/High Q
Nominal frequency: 40/60KHz±300Hz
Sensitivity: 40/60K:30/28±2dB
Receiving IC: MAS6181B

• Operating voltage: 1.1...3.3 V
• Current consumption: 85 µA max
• Receiving frequency: 77.5 KHz
• Board size (without antenna) LxWxH: 22x13.5x1 mm
• Antenna quality: Lx?: 60x10mm
• Scope of delivery: 1 piece

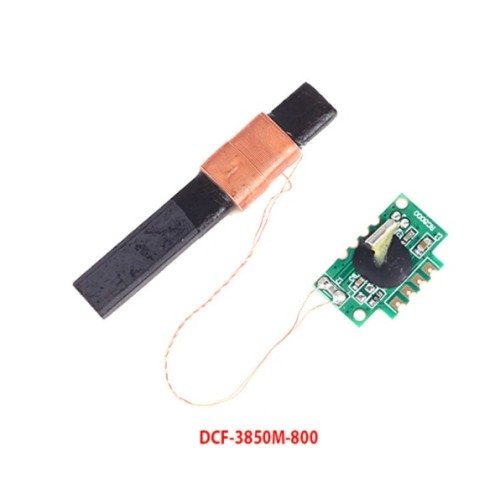

? DCF receiver module with antenna

• connect:
? Ground = Pin G
? Operating Voltage = Pin V
? data = pin T
? Power On/Off = Pin P1

? 40/60K frequency selection = SEL
?AGC(Note 4: Optional Control for AGC On/Hold
AON control pin has internal pull up which turns AGC circuit on all the time if AON pin is left unconnected.
Optionally AON control can be used to hold and release AGC circuit. Stepper motor drive of analog clock or watch can produce disturbing amount of noise which can shift the input amplifier gain to non optimal level. This can be avoided by controlling AGC hold (AON=VSS) during stepper motor drive periods and releasing AGC (AON=VDD) when motors are not driven. The AGC should be in hold only during disturbances and kept on other time released since due to leakage the AGC can still change slowly when in hold.)
• Important note:
? PIN P1 is an on/off switch and must be set to logic low. Тип корпуса: DCF-3850M-800
